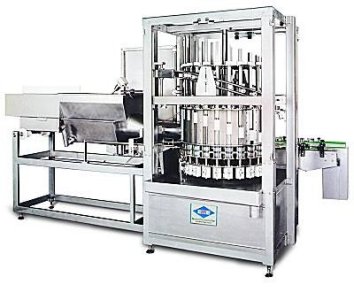

The EME SCHUME is a continous rotary machine. Tha machine size and number of stations is determined by the product to be filled and the output required. The product reaches the SCHUME on a conveyor belt and drops into a wide-mouthed hopper. From the base of the hopper, twin feed screws propel the product laterally into the metering chambers. The product to be filled is transported directly into the metering chambers, which keeps the press-out losses as low as possible.

As each pocket passes out of the product feeding area, a knife cuts the incoming hank of the product. This knives are mounted between the pockets and rotate with the machine. The product is filled into the cans, pots or glass by the pistons. The headspace in teh container ist compacted so that no product remains above the container rim.

The EME SCHUME filling machines are of rugged construction and give a long service life at high filling rates. The machines are constructed completely from stainless steel and plastics. All materials are inert and are suitable for food use. All machine components in contact with the product can easily be wet-cleaned and will dry quickly.

Capacity:

Approx. 5 - 550 containers per minute, depending on filling volume and product

Many options available!
